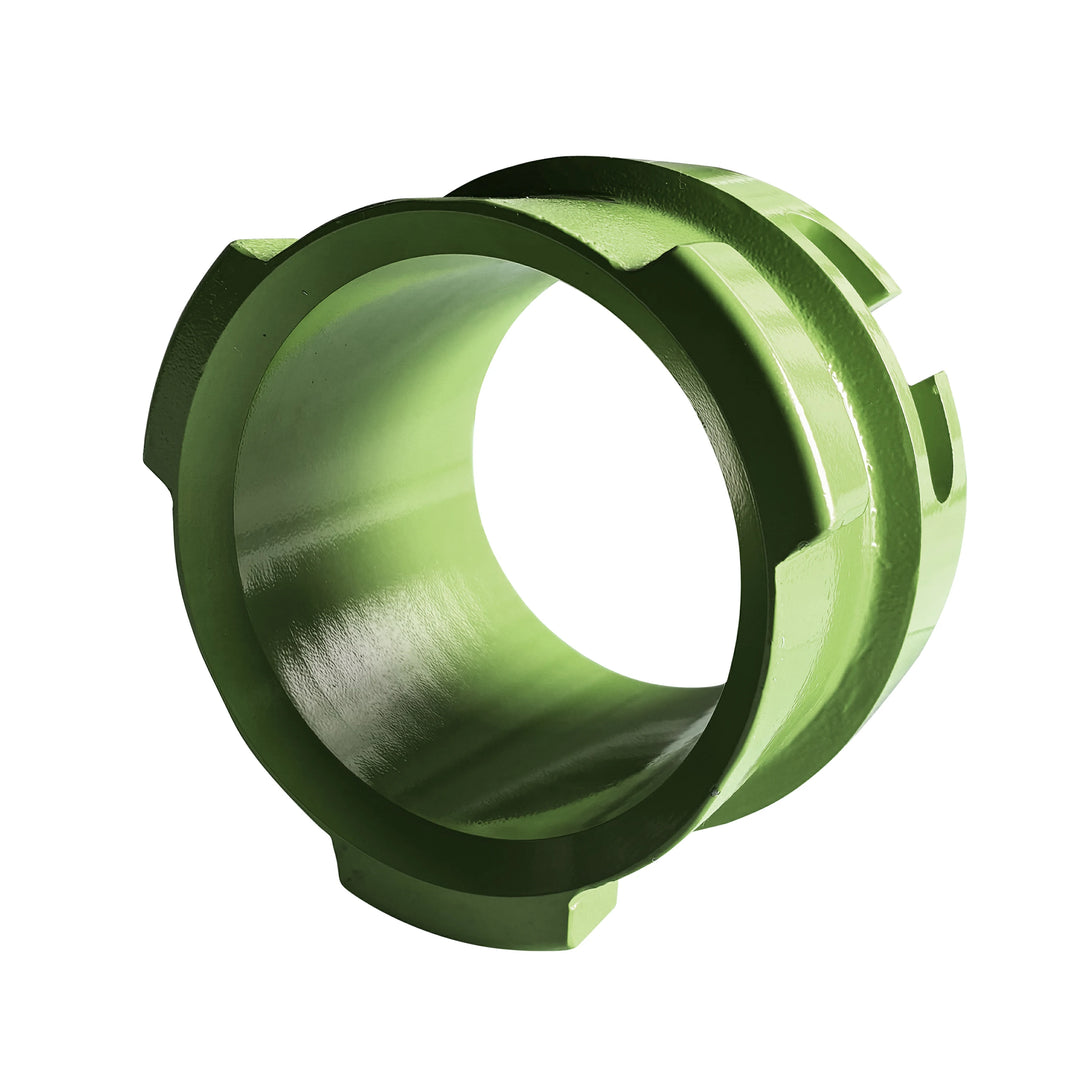

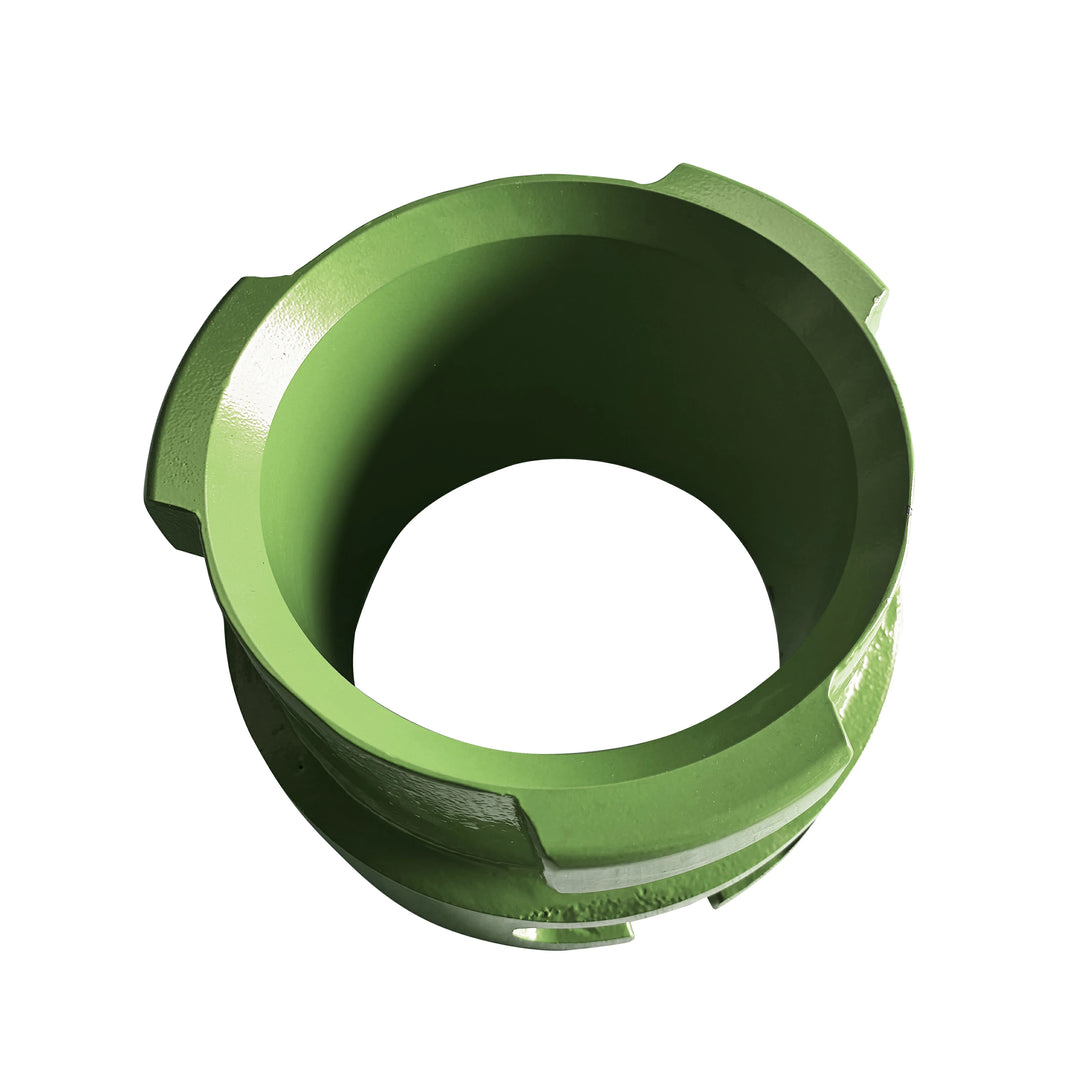

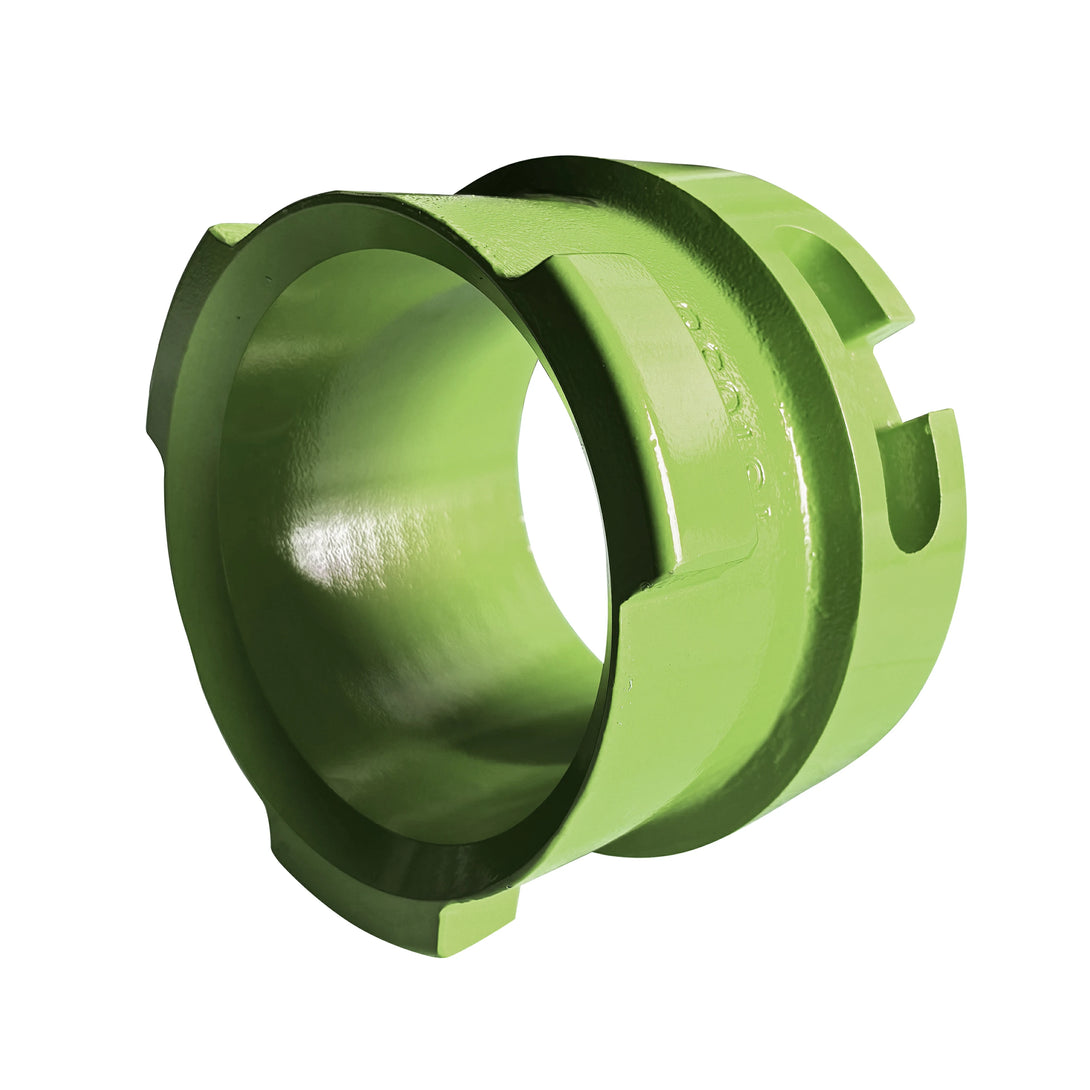

Bayone nut for ladle slide mechanism

Description

The steel ladle clamp nut is a specialized fastener used to secure critical components of a steel ladle (a container for molten steel), such as the sliding gate mechanism, trunnions, and other structural parts. It operates in extreme conditions, including high temperatures, heavy loads, and intense vibrations. Below are its key features and applications:

1. Primary Functions

  • Fastening & Locking: Ensures that ladle components (e.g., clamps, bolts) remain secure under high temperatures, preventing connection failure due to vibration or thermal expansion.

  • Heat Resistance: Must withstand temperatures exceeding 800°C, requiring materials with excellent oxidation and creep resistance.

  • Safety-Critical Role: Loosening can lead to molten steel leakage, posing severe hazards, making reliability a top priority.

2. Structural Characteristics

  • Material: Typically made of heat-resistant alloy steel (e.g., 25Cr2MoV, 35CrMo) or nickel-based alloys, often with zinc plating or anti-oxidation coatings.

  • Anti-Loosening Design:

    • Double-Nut System: Primary nut + lock nut for enhanced security.

    • Asymmetric Threads: Such as Spiralock threads to resist vibration-induced loosening.

    • Metal Inserts: Some nuts incorporate locking washers (e.g., Nord-Lock) for added grip.

  • Shape: Often hexagonal flange nuts to distribute stress over a larger surface area.

3. Applications

  • Sliding Gate Mechanism: Secures bolts in drive systems exposed to frequent thermal cycling.

  • Trunnion Connections: Critical load-bearing joints supporting the ladle’s weight.

  • Lifting Components: Fastens crane-attached hooks or lifting lugs.

4. Maintenance & Replacement

  • Regular Inspections: High temperatures accelerate fatigue, necessitating checks for thread wear, deformation, or oxidation.

  • Preload Control: Must be torqued to specifications to avoid over/under-tightening.

  • Replacement Intervals: Shorter lifespan than standard industrial nuts, depending on usage intensity.

5. Key Considerations

  • Standard Nuts Are Prohibited: Only heat-resistant specialty nuts should be used—carbon steel nuts would fail rapidly.

  • Thermal Expansion Compensation: Design must account for differential expansion between bolts and nuts.
